We specializes in Gasket and Sealing products namely Spiral Wound Gasket, Ring Type Joint (RTJ), Camprofile Gasket, Metal (Double) Jacketed Gasket, Heat Exchanger Gasket and Soft Cut Gasket.
To produce and continually develop quality products at a competitive price with friendly environmental technolog
To produce and continually develop quality products at a competitive price with friendly environmental technolog
Our clients and customer are mostly from Oil & Gas Company, Power Generation Plants, On & Off Shore Industries, Ship
Our clients and customer are mostly from Oil & Gas Company, Power Generation Plants, On & Off Shore Industries, Ship
To continue the heritage of company to be the main manufacturer in supplying the gasket and sealing products
To continue the heritage of company to be the main manufacturer in supplying the gasket and sealing products
BENESOME SEALING SDN BHD was established in 2010. We specializes in Gasket and Sealing products namely Spiral Wound Gasket, Ring Type Joint (RTJ), Camprofile Gasket, Metal (Double) Jacketed Gasket, Heat Exchanger Gasket and Soft Cut Gasket.

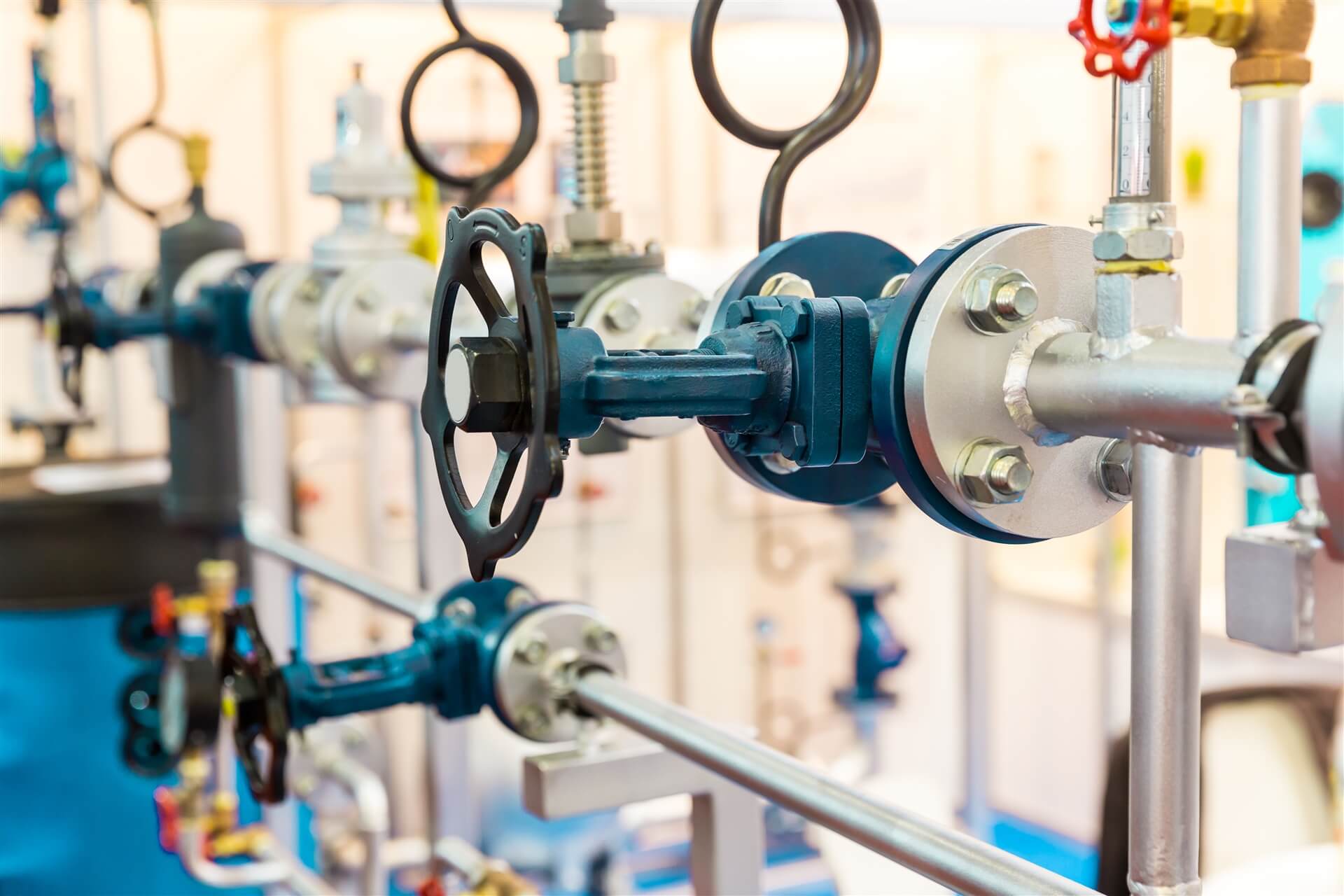

BENESOME SEALING SDN BHD also trade all kind of valves such as Gate, Globe, Check, Butterfly and Ball Valve. Our clients and customer are mostly from Oil & Gas Company, Power Generation Plants, On & Off Shore Industries, Shipbuilding & Marine Industries, Chemical & Petrochemical Industries.

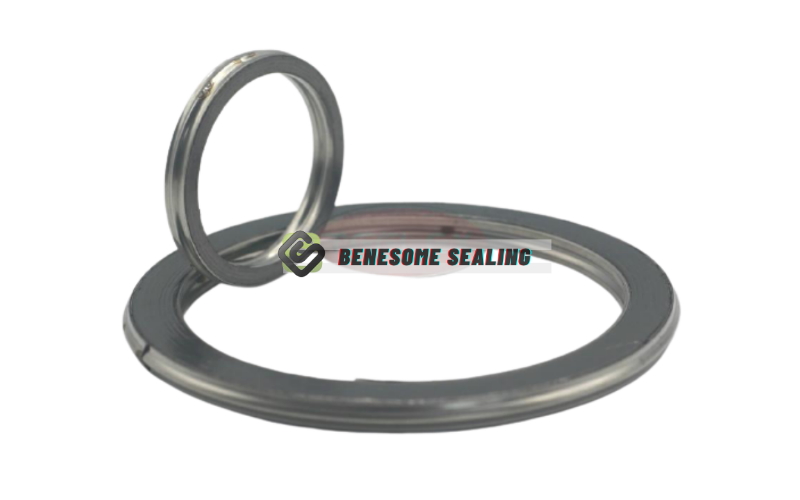

Graphite filler winded with SS316L winding A type without Inner and Outer ring
Compressed from graphite rolls, used for sealing of screw thread, flange and valve stem
Low-sulphur expanded graphite without any filler and binders
Used as gasket material, made of expanded graphite reinforced with flat stainless steel SUS316
Chrysotile asbestos fibre with synthetic oil and solvent resistant elastomers with a corrosion resistant metal gauge centre
Kammprofile gasket consist of a solid core with machined grooves and soft material facing (graphite, PTFE, others)
Flexible graphite gasket with a tanged stainless steel sheet reinforcement
High purity graphite, available in a variety of configuration Temperature resistance from -250°C and +550°C
R type - Oval and Octagonal Oval is the only gasket for the old type round bottom groove Both types is interchangeable on the modern octagonal type / newer flat bottom grooved flanges (Type RX and BX?)
Semi-metallic, comprising of a spirally wound v-shaped stainless steel strip a non-metallic filler material strip
Non-asbestos, rubber-bonded gasket materials made from aramid fibres and special fillers Thickness availability from 0.4mm - 5.0mm Temperature resistance from -50 °C to 300 °C
A type of synthetic rubber made up of ethylene, propylene, and diene monomers
Nitrile rubber, a synthetic rubber derived from acrylonitrile and butadiene
High grade blended Neoprene and synthetic rubber sheet, reinforced with cotton fabric
Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer of tetrafluoroethylene that has numerous applications
Insulation and corrosion resistance. Used to electrically isolate flange joints, preventing the flow of electrostatic charges along the pipeline

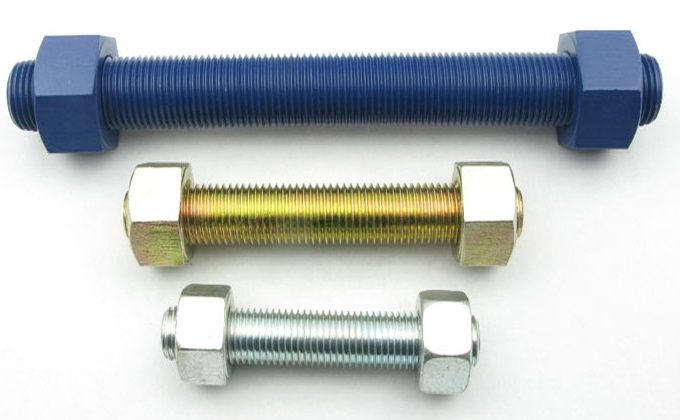

Bolt is a fastener that is often combined used with a nut. The nuts consist of a head and a hollow circular cylinder body whereas the bolt consists of a head and a solid cylinder body.

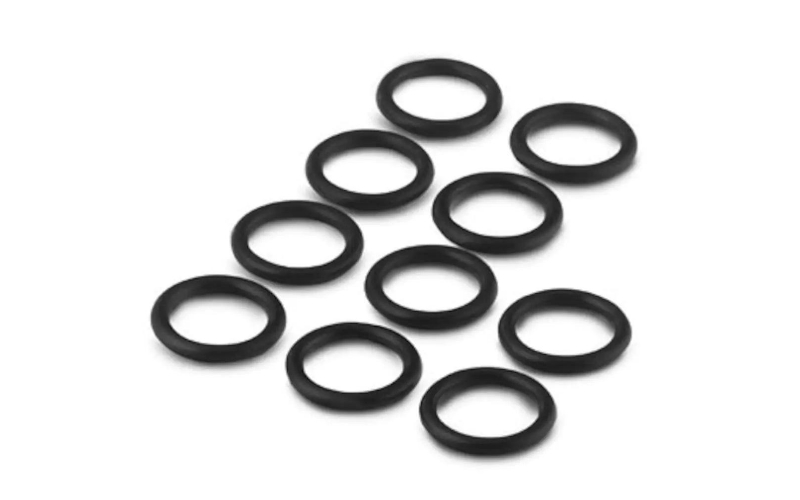

We provides a extensive range of O-Rings offered in Neoprene, Nitrile, EPDM, FKM, PTFE and Silicone material.
Description
✓ Graphite filler winded with SS316L winding
✓ A type without Inner and Outer ring
Benefits
✓ Excellent tightness and tolerance to temperature and pressure changes
Applications
✓ Suitable for use on pipe flange, valves joint, pump

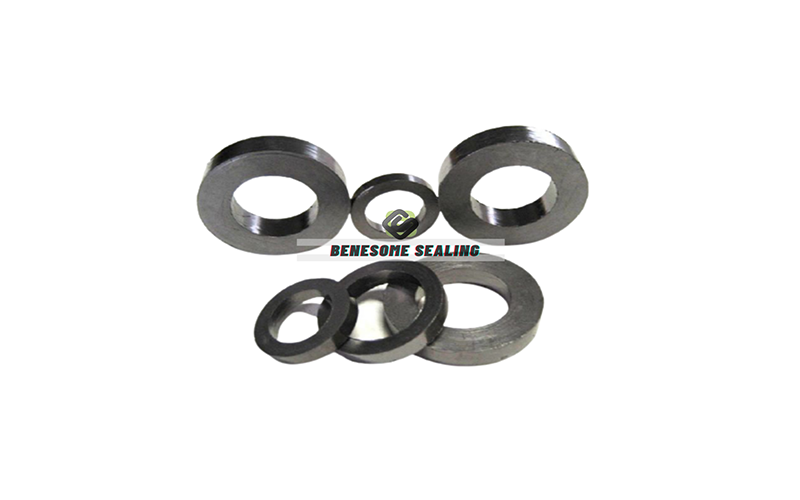

Description

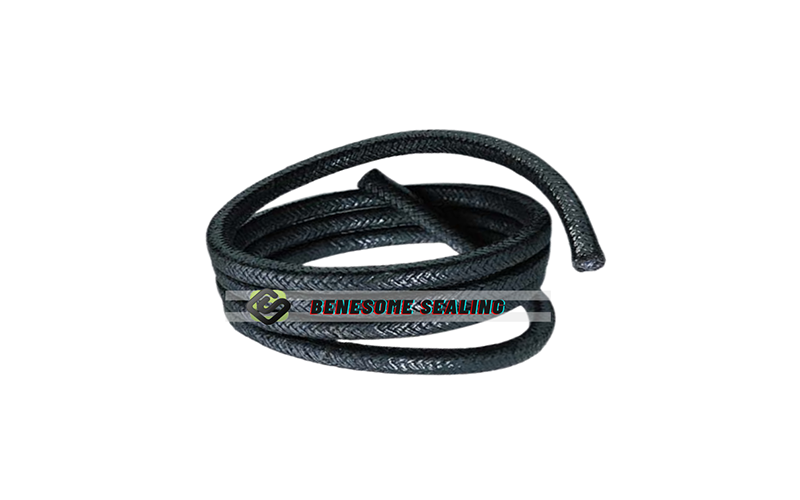

✓ Compressed from graphite rolls, used for sealing of screw thread, flange and valve stem
Benefits
✓ Excellent withstand high temperatures
✓Can be custom made in any suitable metal
✓Corrosion resistance
✓Good elasticity
Applications
✓ High temperature, high pressure, steam, heat exchangers, boiler, pipes
✓Sealing of screw thread, flange and valve stem

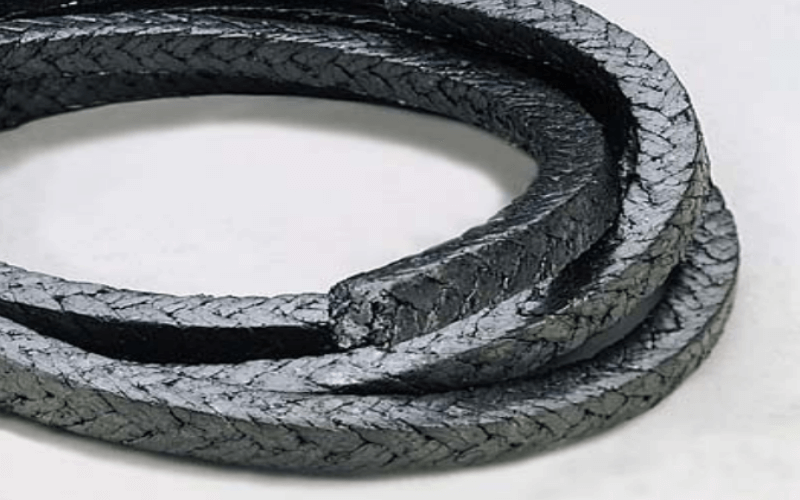

Description
✓ Low-sulphur expanded graphite without any filler and binders
Benefits
✓ Chemical resistant
✓ Fire and heat resistant
✓ High compressibility, flexibility and conformable to the irregular sealing surface
Applications
✓ Suitable use for sealing of valves, pumps and expansion joints which are used in the oil industry and chemical industry
✓ Used as valve stem packing or stuffing box packing in valves and pump

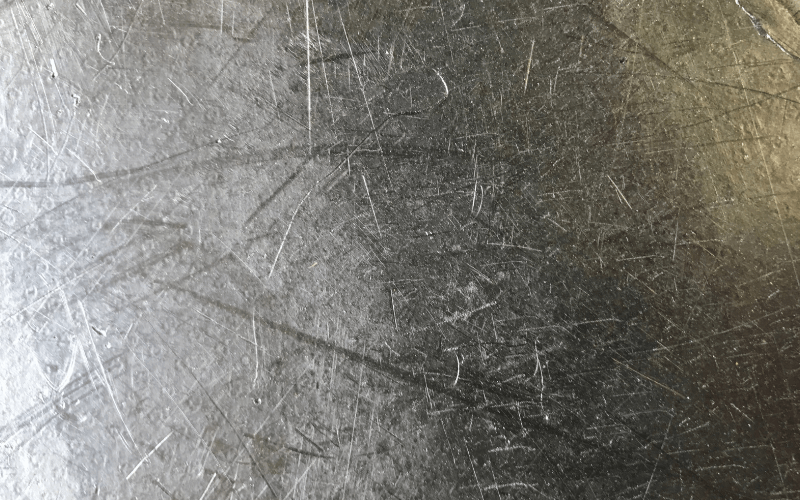

Description

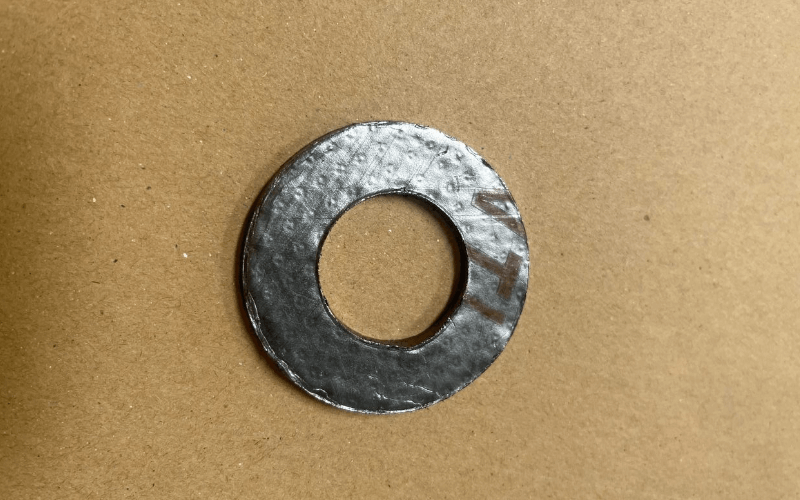

✓ Used as gasket material, made of expanded graphite reinforced with flat stainless steel SUS316
Benefits
✓ Highly Compressible & Compactible
✓ Excellent chemical and thermal resistance
Applications
✓ Suitable for sealing high temperature valves, shafts, and flanges
✓ Suitable for chemical and petrochemical industries, and many other industries fields
Description
✓ Chrysotile asbestos fibre with synthetic oil and solvent resistant elastomers with a corrosion resistant metal gauge centre
Benefits
✓ Wire reinforced to improve blow-out resistance and compressive strength
Applications
✓ Suitable for high mechanical and thermal stress is encountered.
✓ Suitable for high stress conditions e.g. transmissions, hydraulic fluids and also steam alcalies.
✓ Suitable in water, air fuels, alcohols and internal combustion engines

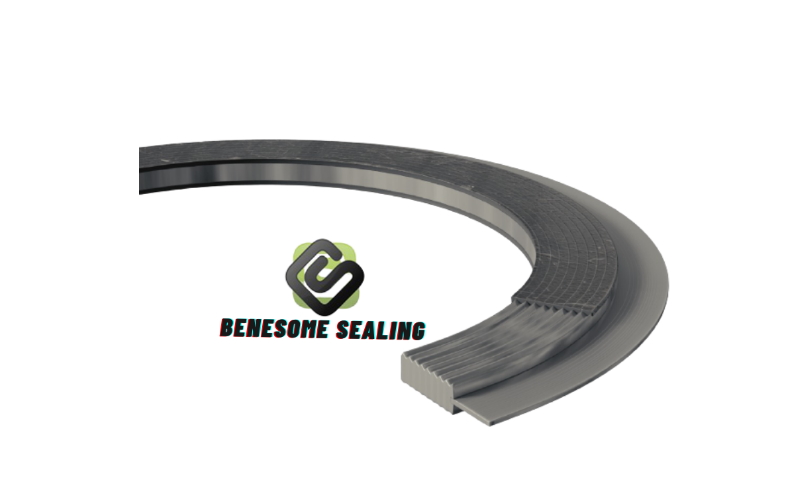

Description
✓ Kammprofile gasket consists of a solid core with machined grooves and soft material facing (graphite, PTFE,
others)
Benefits
✓ Tighter connection
Solid metal core resists cold flow, over compression, and blowout
Can be refurbished and reusable
Seals under low stress
Applications
✓ Suitable for the most difficult applications such as superheated steam, high pressure hydrocarbon or chemical
service.

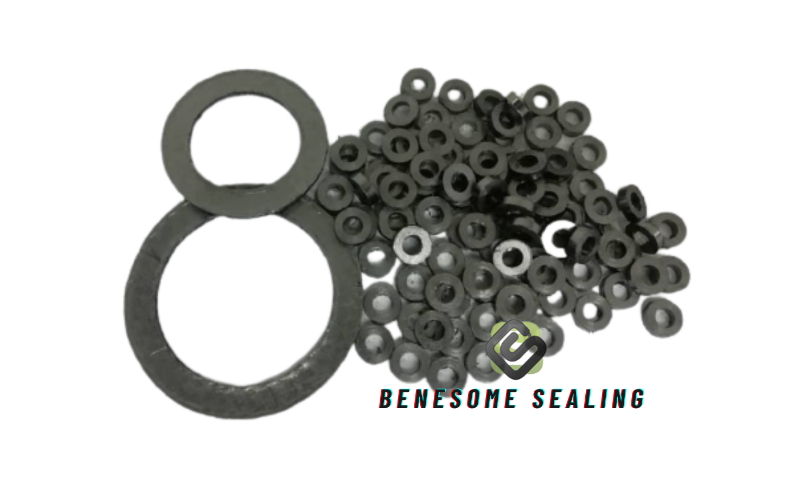

Description
✓ Flexible graphite gasket with a tanged stainless steel sheet reinforcement
Benefits
✓ Improved blow out resistance
✓ High temperature and chemical resistant
Applications
✓ Suitable for industrial fluid sealing applications, such as chemical and petroleum industry
Description
✓ High purity graphite, available in a variety of configuration
✓ Temperature resistance from -250°C and +550°C
Benefits
✓ Excellent resistance to corrosion, pressure and temperature
Applications
✓ Suitable for use in piping, valve, pump and generator applications
Description

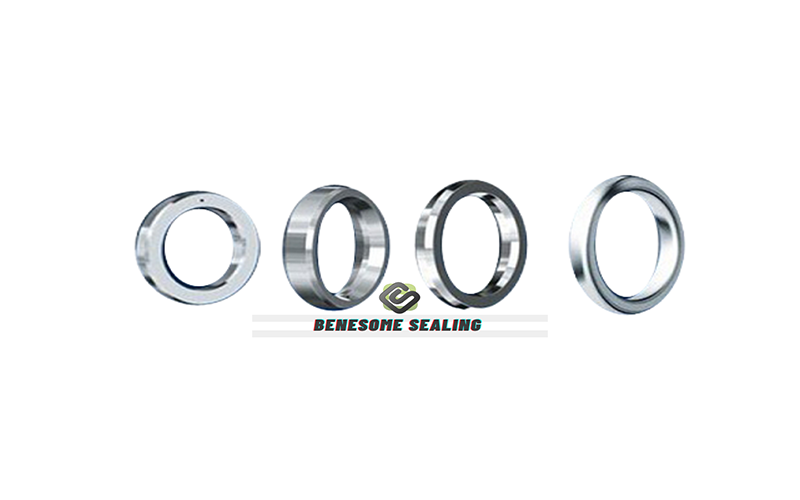

✓ R type – Oval and Octagonal
✓ Oval is the only gasket for the old type round bottom groove
✓Both types are interchangeable on the modern octagonal type / newer flat bottom grooved flanges
(Type RX and BX?)
Benefits
✓ High pressure resistance up to 10,000 psi
Applications
✓ Suitable for high pressure and high temperature applications such as petroleum industry
Description

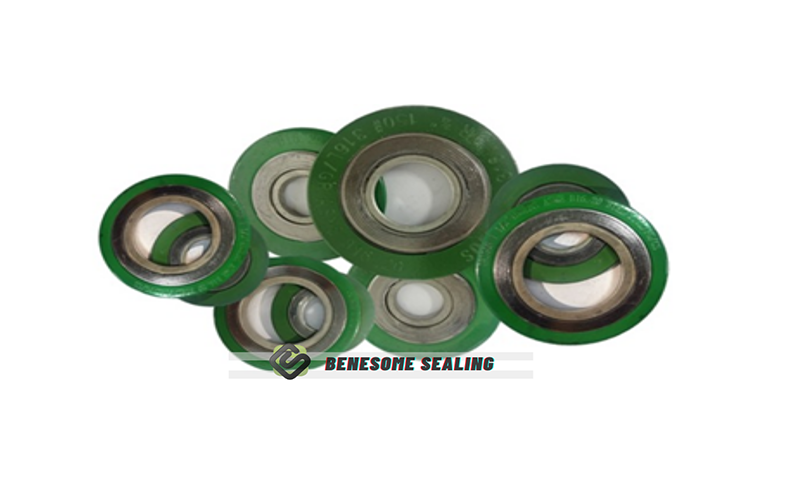

✓ Semi-metallic, comprising of a spirally wound v-shaped stainless steel strip a non-metallic filler material strip
Benefits
✓ Wide variety of sizes and shapes
✓ Excellent withstand high temperatures and pressures
✓ Great resilience
Applications
✓ Suitable for use in a wide range of industries and applications such as heat exchangers, compressors,
condensers, pumps, and valve
Description

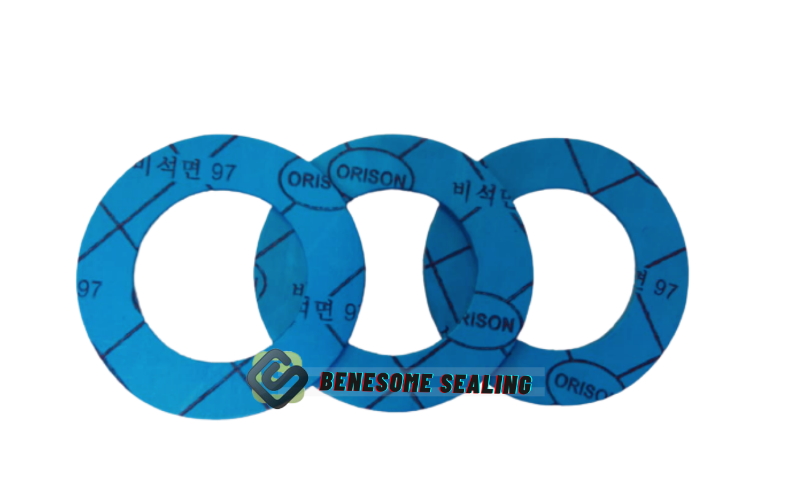

✓ Non-asbestos, rubber-bonded gasket materials made from aramid fibres and special fillers
✓ Thickness availability from 0.4mm – 5.0mm
✓ Temperature resistance from -50 °C to 300 °C
Benefits
✓ Excellent sealing performance
✓ convenient for cutting, punching or molding
Applications
✓ Suitable for water or oil resistant gasket material for light to medium loading
✓ Suitable for low operating pressure, e.g. transformers, compressors and also use for easily deformable
components with low surface pressure like valve covers and pans in internal combustion engines

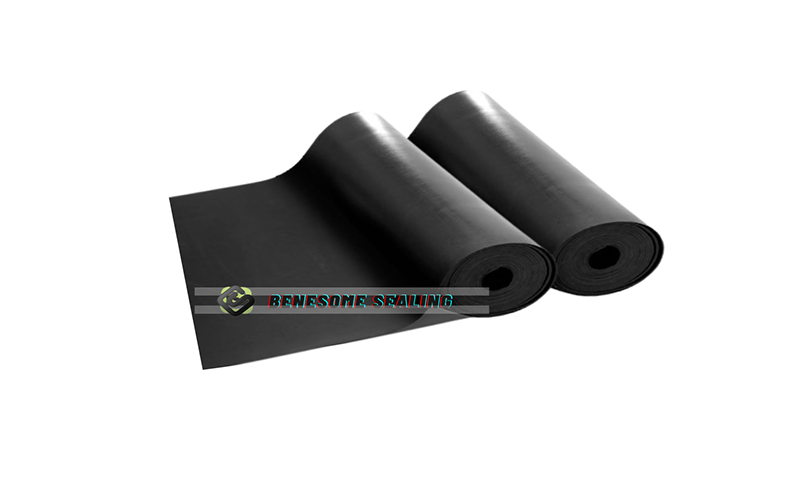

Description

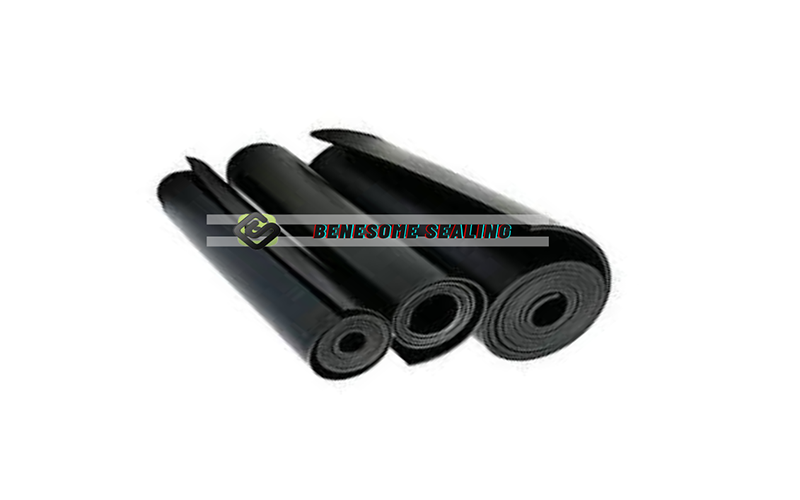

✓ A type of synthetic rubber made up of ethylene, propylene, and diene monomers
Benefits
✓ Excellent resistance to heat, UV rays, aging, ozone, steam and weather
Applications
✓ Suitable for use in a wide range of industries and applications. such as automotive, industrial, construction, HVAC
Description
✓ Nitrile rubber, a synthetic rubber derived from acrylonitrile and butadiene
Benefits
✓ Excellent resistance to petroleum products
✓ High stability from -40°C to 108°C
Applications
✓ Suitable for use in which oil resistance required, fuel hoses, gaskets, rollers, oil seals, automotive transmission
belts
Description
✓ Cork-elastomer jointing based on nitrile/polychloroprene blend
Benefits
✓ +110°C maximum operating temperature in liquids
✓ Retains flexibility down to -25°C
✓ Easy to cut handle and install
Applications
✓ Suitable for a wide range of duties
✓ Suitable for use extensively in automotive, engineering and electrical industries
Description
✓ A synthetic rubber produced by polymerisation of chloroprene
Benefits
✓ Good resistance to weather, combustion, water, and many chemicals
Applications
✓ Suitable for use in wide range of industries and applications
Description
✓ High grade blended Neoprene and synthetic rubber sheet, reinforced with cotton fabric
Benefits
✓ Good level of flexibility, good resistance to weather, oil, and many chemicals
Applications
✓ Suitable for use in a wide range of industries and applications, flange gaskets on pipes and tanks, washers,
construction seals
Description
✓ FKM Fluoroelastomer gasket material, high-performance rubber
Benefits
✓ Excellent resistance to heat, most chemicals and solvents
Applications
✓ Suitable for use in wide range of industries and applications, oil, gas, mining industries
Description
✓ Premium grade FDA-approved Neoprene rubber sheet
Benefits
✓ Moderate resistance to greases, fats and inorganic salts
✓ Good resistance to weathering
Applications
✓ Suitable for food processing industries, pharmaceutical applications
Description

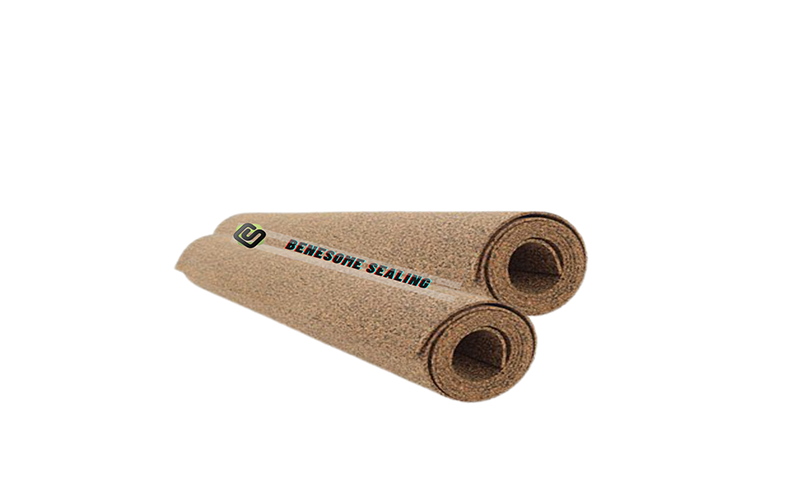

✓ Rubberised cork sheet combines the compressibility of cork with the properties of resilience
as well as resistance to the mechanical action of rubber. The unique cellular structure compresses
under pressure and creates a reverse pressure on the restraining forces
Benefits
✓ Can be easily bent round the sharp corner without cracking
✓ Strong, flexible and easy to cut and can be used for gaskets even with very narrow borders
✓ High elasticity, primarily suited to low temperatures
Applications
✓ Suitable for use in a wide range of industries and applications, automotive, aviation, petroleum, electrical
Description
✓ Excellent resistance to a wide range of chemicals
Applications
✓ Suitable for use in wide range of industries and applications, suitable for food processing industry

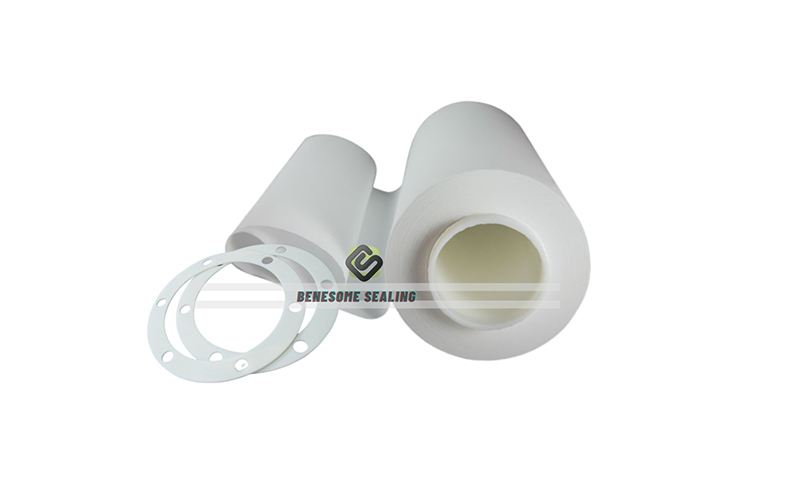

Description

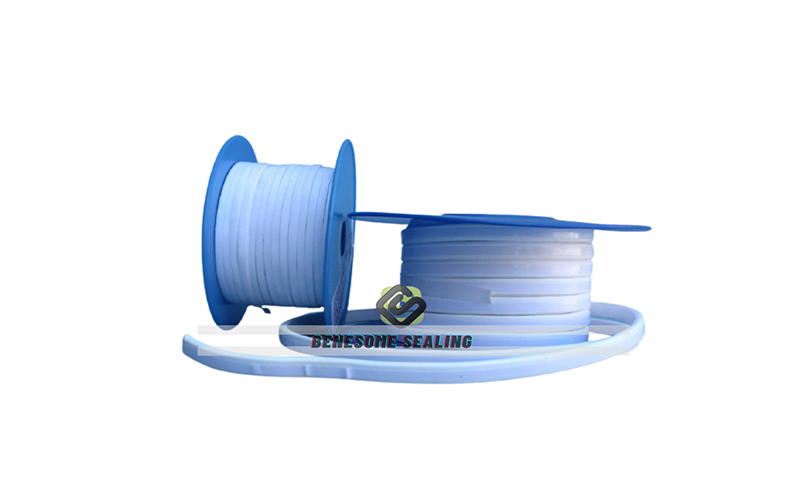

✓ compressible gasket material made of 100% pure, expanded PTFE
Applications
✓ Suitable for worn, irregular sizes equipment flange

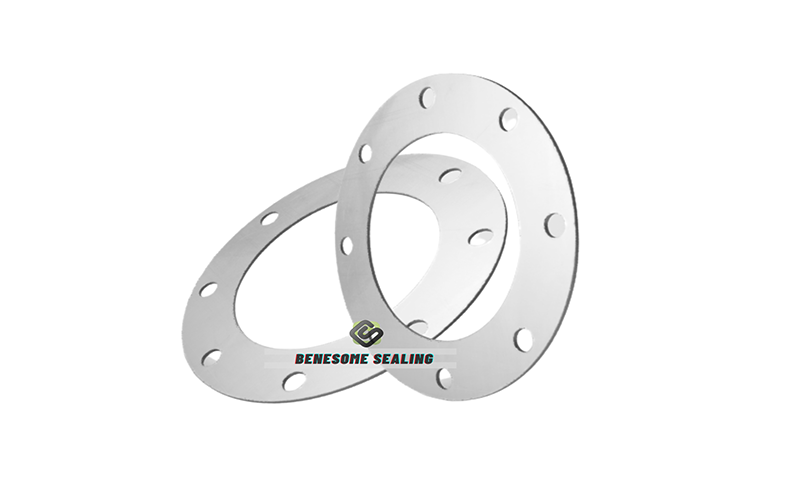

Description

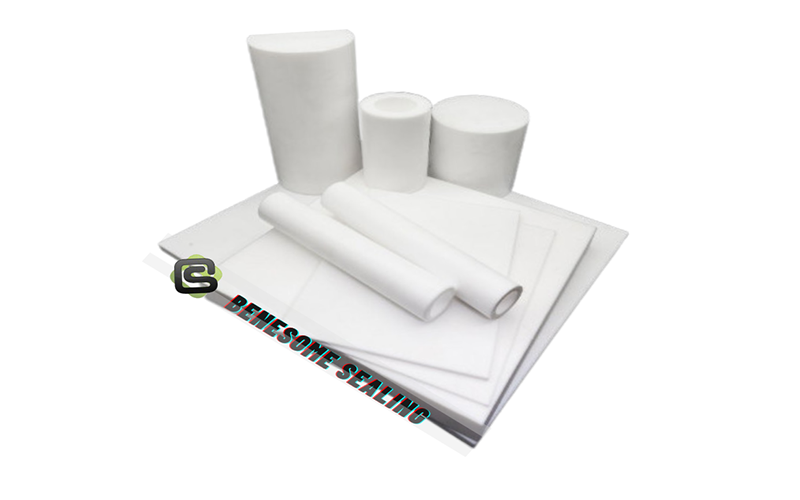

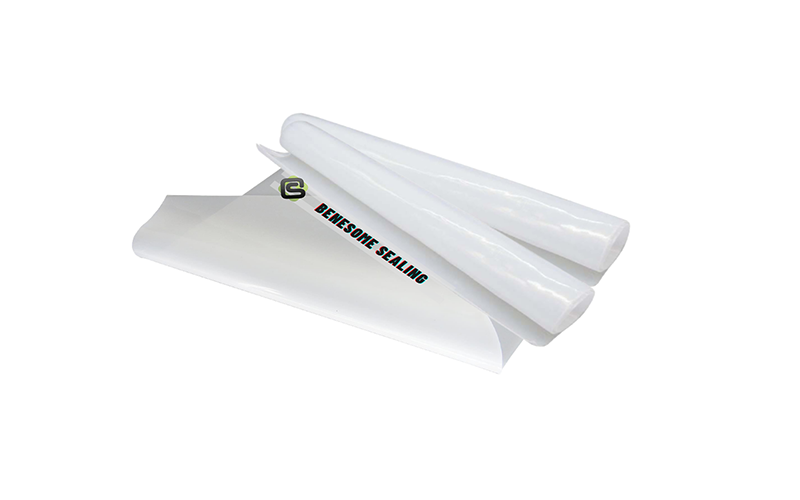

✓ Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer of tetrafluoroethylene that has numerous applications
Applications
✓ Suitable for use as a gasketing material with strong chemical resistance properties. Suitable for the food
processing industry
Description
✓ Excellent resistance to extreme temperature
Applications
✓ Suitable for medical and industrial applications

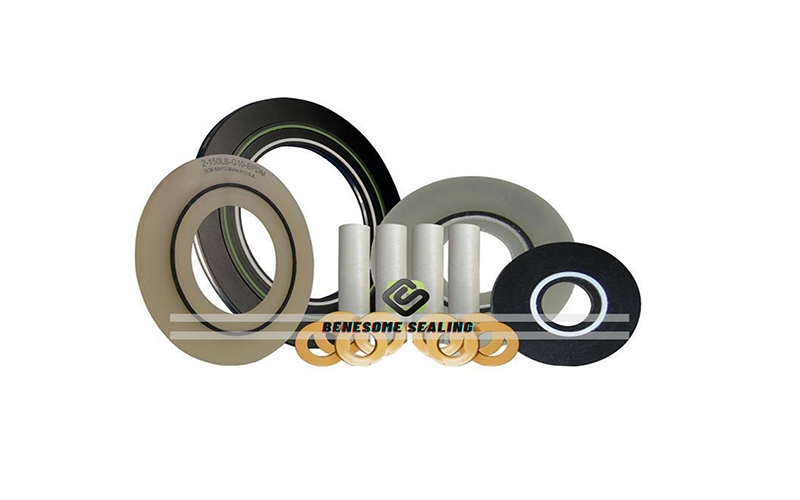

Description
✓ Insulation and corrosion resistance. Used to electrically isolate flange joints, preventing the flow of electrostatic
charges along the pipeline
Applications
✓ For energy applications, isolating applications
